nopCommerce - Hello World to Multi Tenancy

Finally, it is about time to do some multi tenant works. Let's recap my goal and how I am travelling so far.

Scope

• Build a multi tenant e-commerce platform for 15 or more international brands.
• They are completely different brands and target consumers are completely different.
• They will share some similarities in terms of functionalities but there will be customizations for individual brands
• Administrator of a brand can only see stuff about their own brand.
• Easy to develop
• Easy to deploy
• Easy to maintain
• There is NOT necessary a super admin role to overlook ALL the brands.
• Customers are NOT shared across brands.

Preparation

So far, I have built my first brand with the above scope in mind, the following strategies were implemented.

• Customization for Model
• Create new domain object
• Create new services
• Inherit Services
• Controller by Inheritance

And here is the outcome.

• Our first site went live

Specification

Since our first site went live, we are now ready for our next brand and the following needs to bear in mind with the followings:

• Separate the brand specific codes in separated dll.
• Database to be considered at later stage.
• No brand specific code at controller level.
• Views for different brands are handled by Nop Theme.
• We will deploy for all the brands from the same Visual Studio Solutions.

Decision Making

• This Microsoft article is a great start for multi tenancy. http://msdn.microsoft.com/en-us/library/aa479086.aspx
• One code base vs multiple code base? (One Visual Studio solution or multiple solutions)
• One database vs multiple database?

Get Dirty with Code

Project Setup

Notice I am skipping some of the steps and only covering the key points. (eg. Add references, routes, register dependency etc...) They are covered previously.

I created a Misc Service and an interface for our platform.

Then I create brand specific services in the relevant projects.

Build Configuration

With the default Debug configuration, we will clone a set of new build configs per projects. In each build, we only include one brand dll at a time. (Only service dll in this example)

Only for the relevant build configurations of the brand projects, we will set the dll output path to the same as the Nop.Web project.

Controller

We setup a controller that will consume ITAMiscService and return the brand name. Notice how the controller does not have knowledge to the concrete class but only the ITAMiscService interface.

Hello World to Multi Tenancy

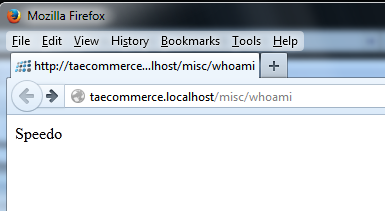

Who am I?

By changing the build configuration, I am able to change my workspace to the corresponding brand.

This is achieved by a MS Build trick.

• The brand projects are not referenced anywhere (very important)
• Therefore, when we build Debug, there will not be any brand specific dlls.
• We used build configurations to trick MS Build to dump the brand dll to the web project for relevant brands.
• Autofac reflection will pick up the brand dll if they exists, because of the way how Nop Dependency Register works.

Caution

• Use clean solution in between the building of different brand environments (to delete any brand dlls).
• Pay attention to the dlls in the Nop.Web bin folder. Occasionally the clean solution do not delete everything in the bin folder. Then we will need to manually clear this folder.
• Always check Who am I to make sure you are working in the right brand.

Further Improvement

• It is not so easy to deploy, as I need to build the project once per brand (so it will generate different dlls)
• Unfortunately in practice, clean solution doesn't always work. For anyone who familiar with MS Build, we could create pre-build event to properly clean up the solutions (instead of relying on Visual Studio)
• Combine MS Build with PowerShell, we can implement a way to "quick switch" dlls for different brands.

TSQL - Delete Duplicate Rows Basic Techniques

Scope

From time to time, I will be asked to delete duplicate rows from the database. This is a very easy job but if you don't know the trick, it might get you off-guarded.

In this exercise, we are trying to find out if there are any products with the same SKU in the system and remove all the duplicates but leave one alone.

Steps

First we will check if any duplicates by using group by and having.

select Sku, count(Sku) as Cnt
from Product
group by Sku
having count(Sku) > 1

We found 245 duplicate products.

We will verify the above by checking the product id.

select P.[Id], Duplicates.Sku
from Product P
join (select Sku
      from Product
      group by Sku
      having count(Sku) > 1) Duplicates on (Duplicates.Sku = P.Sku)

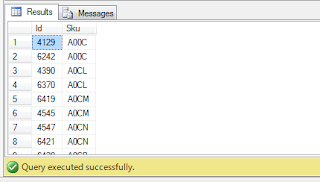

The same SKU shown with different product ids.

The trick we use is use aggregation to group them together and pick the odd one we want. Showing all the duplicate products with only 1 row per sku by their max id, and leave the duplicates out of this result set.

select max(P.[Id]) as Id, Duplicates.Sku
from Product P
join (select Sku
      from Product
      group by Sku
      having count(Sku) > 1) Duplicates on (Duplicates.Sku = P.Sku)
group by Duplicates.Sku

We picked our 245 products that we will keep.

The last thing to do is to remove the duplicates except the ones we picked. This is by using delete from. Notice the deived table in the query are from previous checking code.

delete Product
from (select max(P.[Id]) as Id
      from Product P
      join (select Sku
            from Product
            group by Sku
            having count(Sku) > 1) Duplicates
                                          on (Duplicates.Sku = P.Sku)
      group by Duplicates.Sku) ProductToDelete
where Product.Id = ProductToDelete.Id

245 rows with duplicate SKUs deleted.

What if?

Sounds too good to be truth? What if the following scenario arise, can we still do it?

• A legacy SQL table doesn't have ID nor primary key for us to use group by on.
• Need to find out duplicate values of whole row or multiple fields of a row and not just 1 field (in my case SKU)

The common fallency is that we need to use cursor, multiple sql scripts or a console app to loop through something. In fact not, it is achievable with T-SQL only and these are typical job interview questions that I would ask (as an interviewer) in the SQL area. :)

HttpWebRequest Error. The underlying connection was closed: Could not establish trust relationship for the SSL/TLS secure channel.

Scope

In an attempt to use HttpWebRequest to make https call to our server, I got the error of

The underlying connection was closed: Could not establish trust relationship for the SSL/TLS secure channel.

Pretty self explained that it is complaining about SSL certificate or security issue or UTC clock offset etc. For my purpose, this is a local server that I am calling and I am not transferring sensitive data anyway, so I am not worrying about SSL security.

Solution

try
{
    ServicePointManager.ServerCertificateValidationCallback = new RemoteCertificateValidationCallback(delegate { return true; });

    var req = HttpWebRequest.Create(url);
    var res = req.GetResponse();

    using (var stream = res.GetResponseStream())
    {
        using (var sr = new StreamReader(stream))
        {
            return sr.ReadToEnd();
        }
    }
}
catch (Exception ex)
{
    Console.WriteLine("Exception caught: " + ex.Message);

    return string.Empty;
}

All it take is the first line of ServerCertificateValidationCallback delegate to return true, the rest is just standard HttpWebRequest call.
